ANTHEPROT User Manual


01-01-2010  : 3D viewer

The 3D viewer of ANTHEPROT is an software called AntheProt 3D. AntheProt 3D software is an independant molecule viewer that allows to look at PDB files. Antheprot 3D is a program for the visualisation of proteins, nucleic acids from RCSB archive. Antheprot 3D runs on Microsoft Windows systems. It has been developed in Visual Basic 6 and OpenGL for graphic primitives. You may have a look at the ANTHEPROT3D gallery here.

Antheprot 3D is distributed as AntheProt_3D.exe self extraction file. The content of this archive is also included in the ANTHE_2000.EXE archive. When executed, the files are extracted into a single directory. The name of the final executable is Antheprot_3D_viewer.exe.

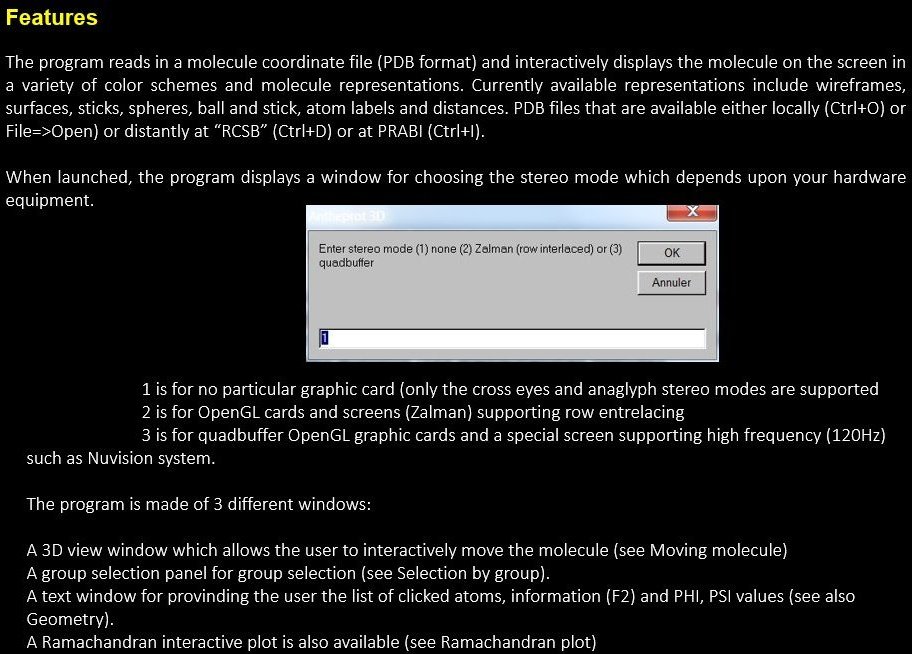

  • Features

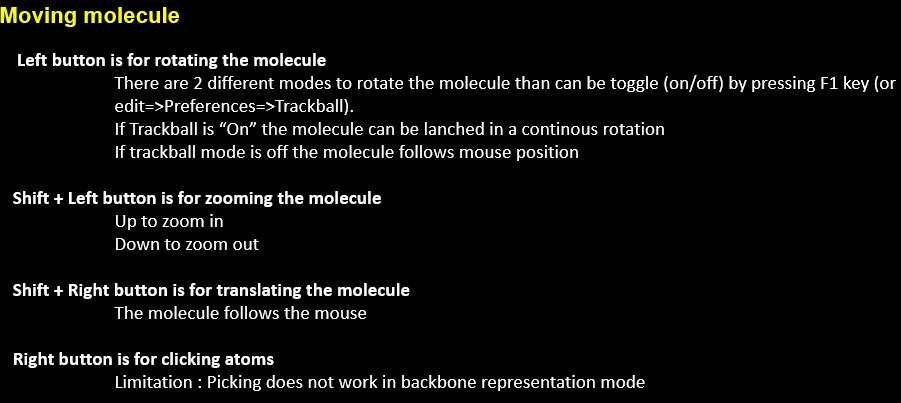

  • Moving molecule

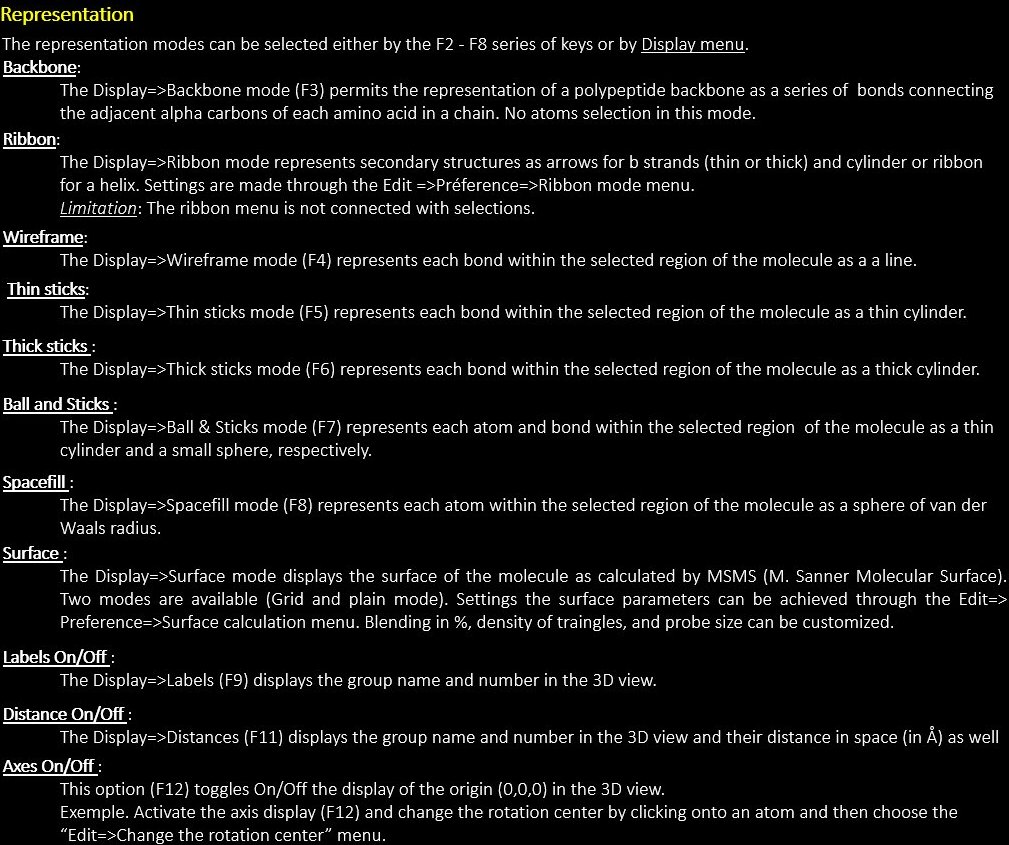

  • Representation

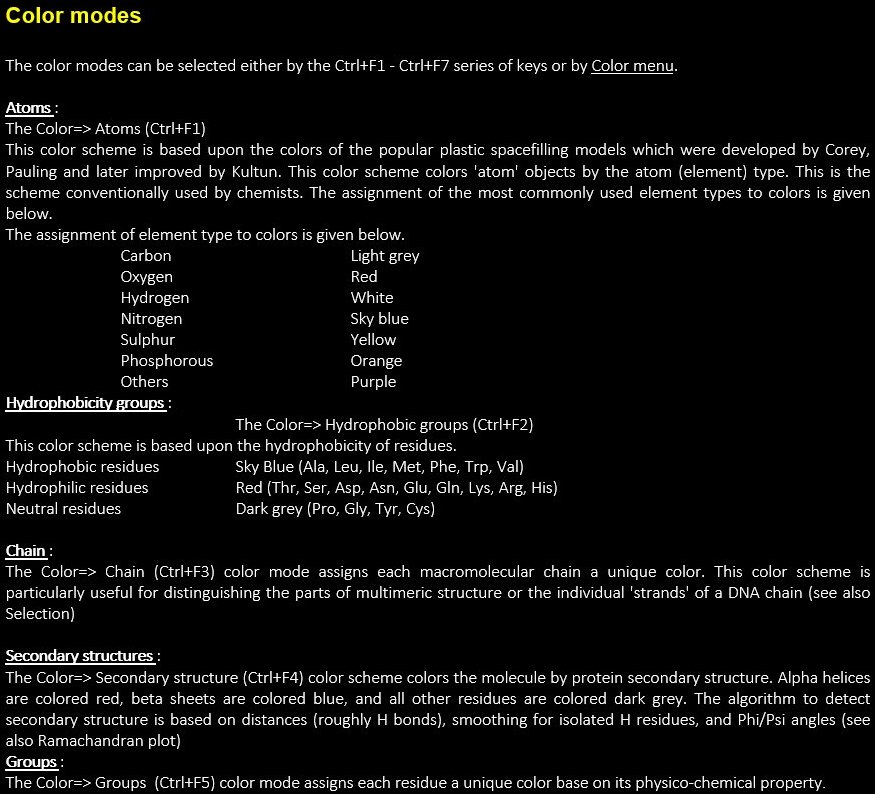

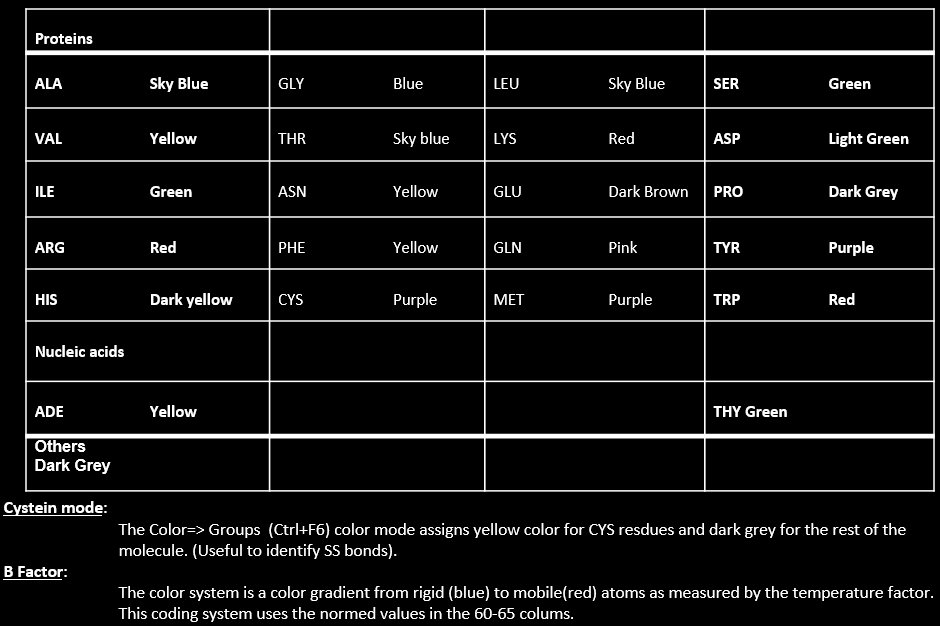

  • Color modes

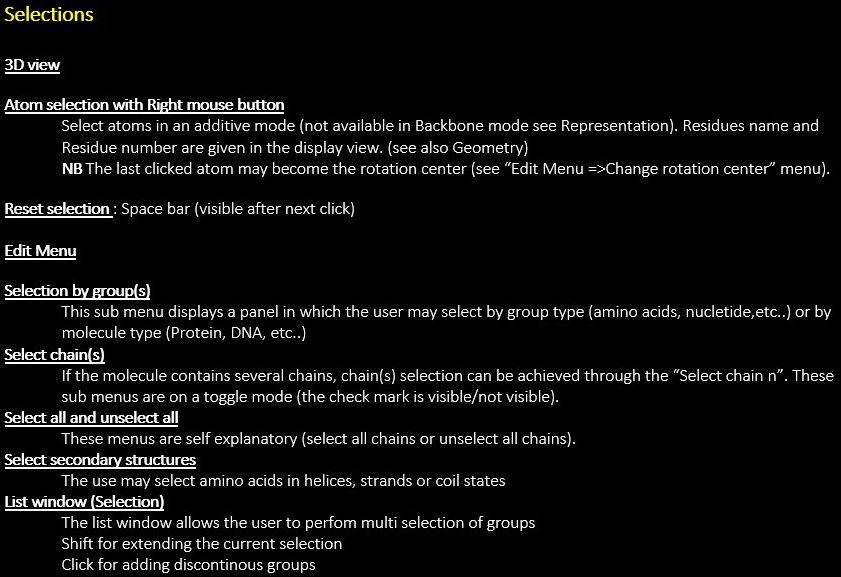

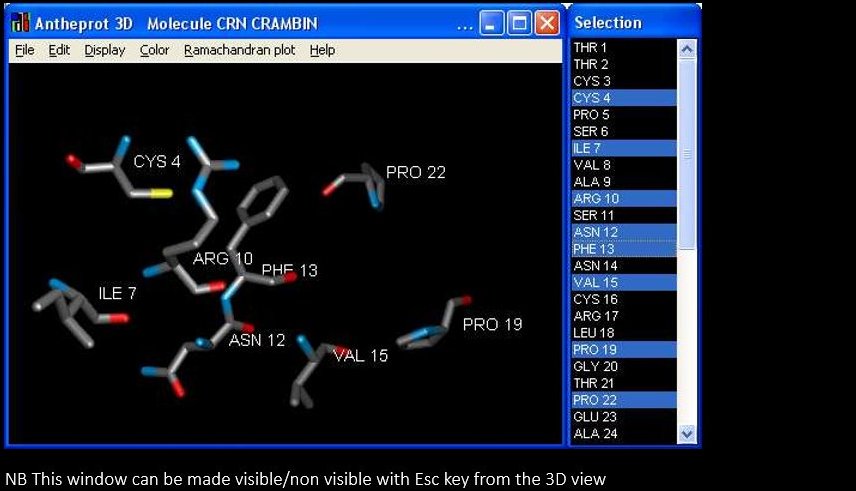

  • Selection

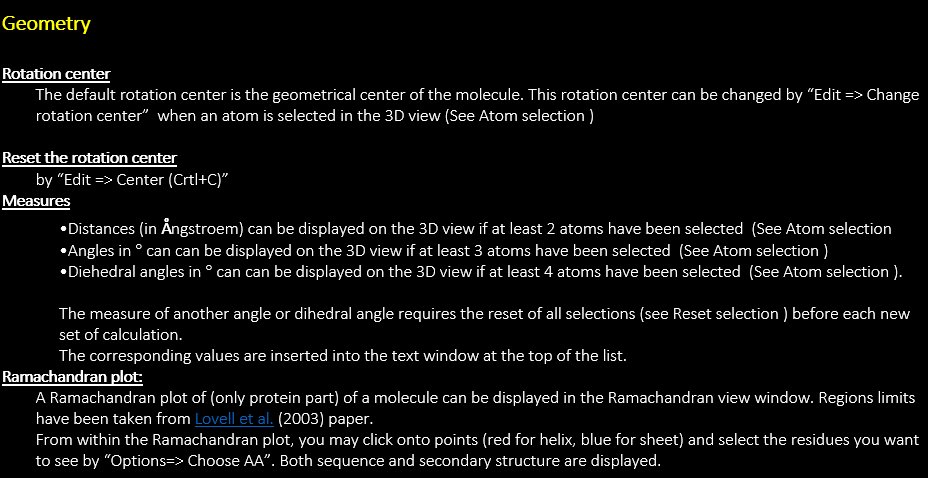

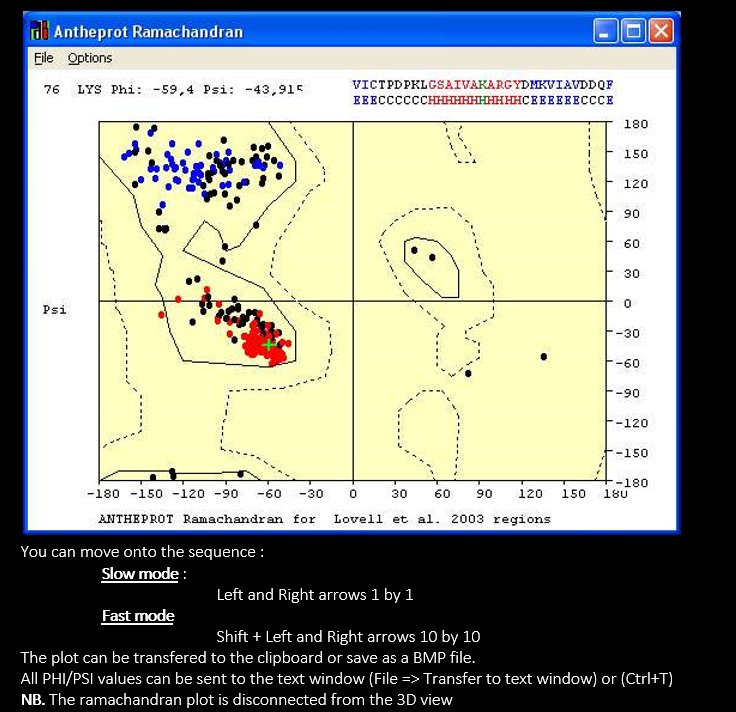

  • Geometry

  • Thanks




  • Top




    Top




    Top






    Top






    Top






    Top




    Thanks and references



    Surfaces are calculated with the help of MSMS program from M. sanner (Scripps Institute) :

    Sanner, M.F., Spehner, J.-C., and Olson, A.J. (1996) Reduced surface:an efficient way to compute molecular surfaces. Biopolymers, 38 (3), 305-320.


    Ribbons are calculated with the help of the Molauto/Molscript couple of programs by Per Kraulis :

    P. J. Kraulis, (1991) Journal of Applied Crystallography 24, pp 946-950.
